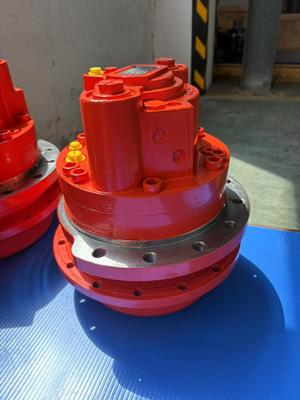

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial

Brand Name:	Ouster
Model Number:	MCR5T820
MOQ:	1PC
Price:	$1000-$3000
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	5000PC/Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CO,CE

Document:

Ouster Hydraulic pump parts...��.pdf

Contact Number:

+8613586697819

Warranty:

One Year

Power:

Hydraulic

Shipping Way:

By Express, Sea, Air

Use:

Engineering Machinery

Production Capacity:

5000PC/Year

Condition:

New

Material:

Steel Iron And Copper

Packaging Details:

Carton/Wooden Box

Highlight:

Rexroth Radial Hydraulic Motor

MCR15 Radial Hydraulic Motor

MCR5 Radial Piston Motor

Product Description

MCR5,MCR10,MCR15 Rexroth Radial hydraulic motor for industrial

1, Product Overview

· Product positioning: The MCR series belongs to precision cycloidal motors, not ordinary cycloidal motors (such as the BMRS series). It adopts the core principle of Nabotek's unique RV reducer technology - the cycloidal pinwheel planetary transmission mechanism, and has undergone hydraulic integration design, achieving performance far beyond traditional cycloidal motors.
· Core features: high precision, high rigidity, high torque, low noise, low vibration.

2, Working principle and core design
The core of MCR motor is the two-stage reduction mechanism with a double cycloidal gear structure:
1. First stage: planetary gear reduction (optional): Some models integrate a first stage involute planetary gear reduction to further increase torque.
2. Second stage: Cycloid pinwheel deceleration:
· The pressure oil drives an eccentric cam to rotate, driving two Cycloid Discs that are offset 180 ° from each other to perform eccentric motion.
· The outer teeth of the cycloid gear mesh with the fixed pin gear on the housing.
· The eccentric motion of the cycloidal gear is converted into low-speed rotational motion under the constraint of the ring gear, and output through the crank mechanism on the shaft.
· The double cycloid wheel design balances radial forces, resulting in a huge output torque and extremely smooth operation with almost no vibration.

3, Core product features
1. Extremely high starting and operating torque: The unique double cycloid structure makes its starting efficiency extremely high (up to 95% or more), and can output much larger torque than traditional motors of the same size.
2. Excellent low-speed stability and high precision: Even at ultra-low speeds of 0.1 rpm or lower, it can run smoothly without "crawling" phenomenon, and the position control accuracy is extremely high.
3. High rigidity and strong impact resistance: Multi tooth meshing (usually involving more than 50% of the needle teeth simultaneously) and sturdy structural design enable it to withstand heavy loads and strong impact loads.
4. Compact structure and extremely high power density: With extremely small volume and weight, it can output amazing torque, making it very suitable for space limited applications.
5. Low noise and low vibration: The balanced design and multi tooth meshing ensure quiet and stable operation.
6. High reliability and long lifespan: Using high-performance bearings and high-quality materials, with minimal wear and an extremely long design lifespan.

4,Typical application
MCR motors, due to their ultra-high performance, are used in applications that require extremely high levels of motion performance
· Industrial robots: joint drives for welding robots, handling robots, and assembly robots, are the flagship application areas of Nabotesk.
· Precision machine tools: CNC rotary table, dividing head, tool magazine drive, requiring high-precision positioning and rigidity.
· Semiconductor manufacturing equipment: equipment that requires ultra smooth and vibration free motion, such as wafer handling and lithography machines.
· Injection molding machine: As a glue motor, it provides stable and powerful torque.
· Heavy duty rotary platform: Drive for radar antennas, satellite communication vehicles, and medical equipment (such as CT machine rotating brackets).
·Special vehicle: The working platform of the aerial work platform is driven by rotation.

Company information:

QUZHOU OUSTER HYDRAULIC Co., Ltd, founded in 2015 with more than 13 years export experience, specializes in procuring and selling hydraulic pumps and hydraulic pump parts.Our main products include hydraulic pumps, hydraulic pump parts, hydraulic motors, gearboxes, and hydraulic valves. Our products have been exported to more than 68 countries worldwide.

Company snapshot:

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 3

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 4

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 5

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 6

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 7

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 8

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 9

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 10

MCR5 MCR10 MCR15 Rexroth Radial Hydraulic Motor For Industrial 11
