| Brand Name: | OUSTER |
| Model Number: | A15VSO |
| MOQ: | 1PC |
| Price: | $350-$2144 |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 5000PC/Year |
1,Product Overview

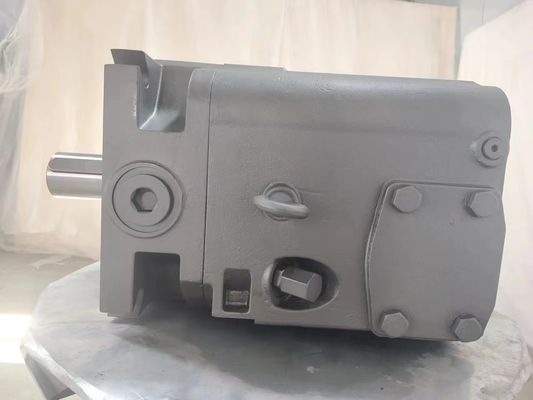

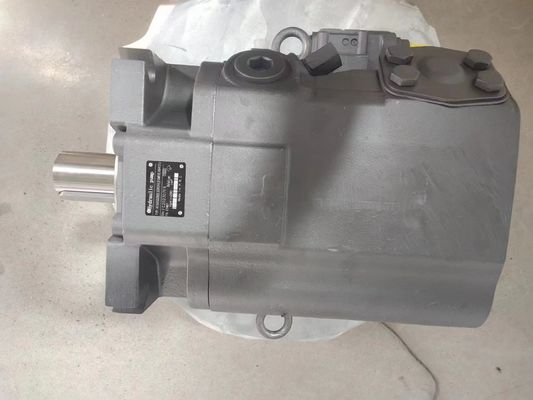

The Bosch Rexroth A15VSO series represents the gold standard in axial piston variable pump technology for industrial applications. Engineered for exceptional performance and reliability, these pumps deliver precise hydraulic power control in demanding high-pressure systems across various industries.
2,Key Features and Benefits
· High-Pressure Capability: Operates continuously at pressures up to 380 bar (5,500 psi), making it ideal for demanding industrial applications
· Superior Efficiency: Advanced design ensures high volumetric and mechanical efficiency (>95%), reducing energy consumption and operating costs
· Multiple Control Options: Available with pressure compensation (LR), load sensing (LS), electrical proportional (EP), and constant power controls
· Quiet Operation: Optimized fluid dynamics and mechanical design result in low noise levels, suitable for noise-sensitive environments
· Long Service Life: Robust construction with premium materials ensures extended operational life with minimal maintenance requirements
· Global Availability: Supported by worldwide service network and readily available spare parts
3,Technical Specifications
· Series: A15VSO
· Type: Variable Displacement, Axial Piston Pump
· Displacement Range: 28 cm³/rev to 280 cm³/rev
· Maximum Pressure: 380 bar (5,500 psi) continuous operation
· Speed Range: Up to 3,000 rpm (depending on displacement size)
· Pressure Compensation (LR)
· Load Sensing (LS)
· Electrical Proportional (EP)
· Constant Power Control (LRG)
· Torque Limiter (DA)
· Efficiency: >95% volumetric and mechanical efficiency
· Mounting: Standard ISO and SAE flange mounts
4,Working Principle
The A15VSO 110/145/175/210/280 operates on the swashplate principle with rotating cylinder block technology. Nine pistons arranged in a cylinder block reciprocate against a tilted swashplate. The swashplate angle determines the piston stroke and thus the pump displacement. Hydraulic pressure acting on the control piston adjusts the swashplate angle, varying the displacement according to the selected control type. This allows precise matching of flow output to system demands while maintaining optimal efficiency.
5,Industry Applications
A15VSO piston pumps serve critical functions in numerous industrial sectors:
· Metal Forming: Hydraulic presses, stamping machines, forging equipment
· Plastic Injection Molding: Injection units, clamp mechanisms
· Test Stand Technology: Component test rigs, material testing machines
· Machine Tools: Hydraulic systems for CNC machines, grinding machines
· Mobile Equipment: Large industrial mobile machinery
· Energy Sector: Wind turbine systems, hydroelectric power controls
· Marine Applications: Deck machinery, steering systems
6,Selection Guide
Choose the right A15VSO hydraulic pump by considering:
. System Pressure Requirements: Determine maximum operating and peak pressures
. Flow Needs: Calculate required flow rates at various operating conditions
. Control Requirements: Select appropriate control type based on system architecture
. Drive Specifications: Match pump size to available prime mover power
. Environmental Conditions: Consider temperature, contamination levels, and noise requirements
. Mounting Constraints: Verify space availability and connection interfaces
Our hydraulic specialists provide free technical consultation for proper pump selection.
7,Frequently Asked Questions (FAQ)
· Q: What makes A15VSO piston pumps suitable for high-pressure applications?
· A: The 110/145/175/210/280 features reinforced housing, optimized bearing design, and special piston group technology that enables reliable operation at pressures up to 380 bar.
· Q: Can A15VSO piston pumps be used in mobile applications?
· A: While primarily designed for industrial applications, A15VSO piston pumps are suitable for large mobile equipment where high pressure and reliability are required.
· Q: What maintenance intervals are recommended for A15VSO hydraulic pumps?
· A: Under normal operating conditions with proper filtration, A15VSO hydraulic pumps typically require minimal maintenance. Regular oil analysis and filter changes are recommended.
· Q: Are digital control options available for A15VSO hydraulic pumps?
· A: Yes, the A15VSO A15VSO 110/145/175/210/280 series offers electronic proportional controls with various interface options for integration with modern control systems.
· Q: Where can I find complete technical documentation?
· A: Comprehensive technical manuals, dimension drawings, and performance curves are available , Contact us for complete documentation.
