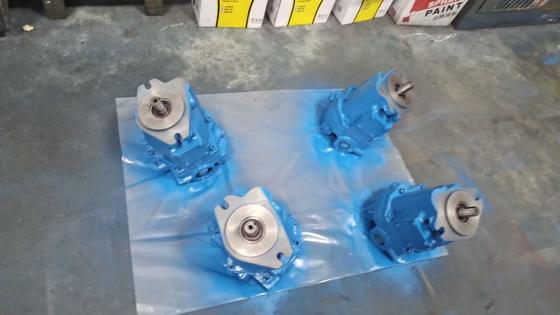

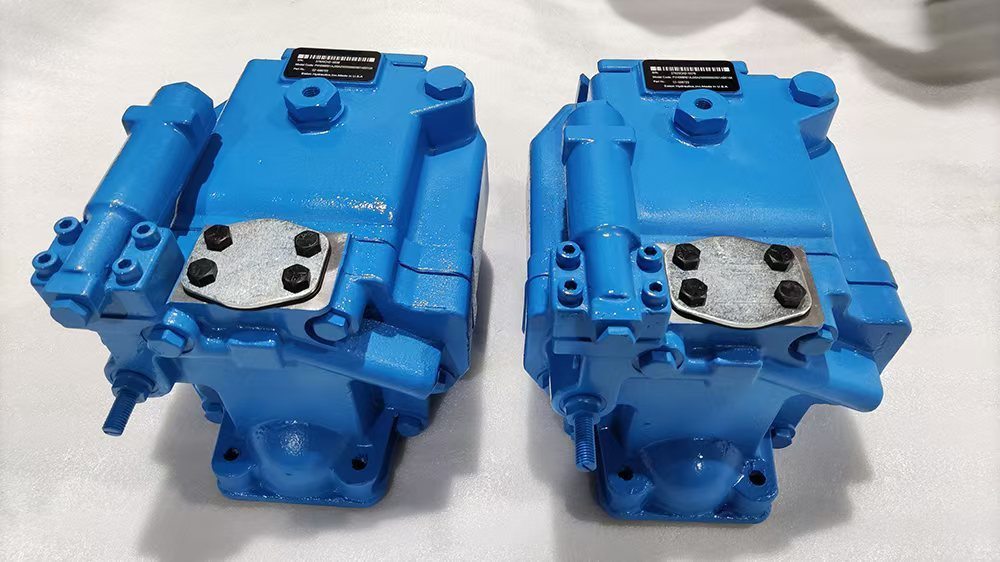

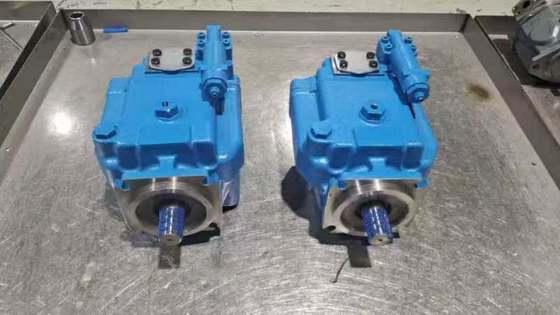

Eaton PVH Variable Displacement Piston Pump For Injection Molding Machines
1, Product Overview
PVH Series Axial Piston Variable Pumps are a flagship product , renowned worldwide for their high pressure, high performance, high reliability, and long service life. They are widely used in demanding industrial hydraulic systems.
2,Basic Working Principle
The PVH pump is a swashplate-type axial piston pump. Its core operating principle is as follows: the drive shaft rotates the cylinder block. Pistons, housed within the block, reciprocate as they follow the swashplate. As a piston retracts from the suction port, the volume in its chamber increases, creating a vacuum that draws in hydraulic fluid. As the piston is forced back in by the swashplate, the volume decreases, displacing the fluid at high pressure. By varying the angle of the swashplate, the stroke of the pistons is changed, allowing for continuous and stepless variation of the pump's displacement.
3, Core features and advantages
. High-Pressure Capability:
Rated for continuous operation up to 350 bar (5000 psi), with even higher peak pressures, making them suitable for heavy-duty applications.
. High Efficiency
Optimized design results in high volumetric and overall efficiency, reducing energy consumption and heat generation.
. Low Noise Level
Precision engineering and design ensure smooth and quiet operation, improving the working environment.
. Long Life and High Reliability
Advanced design of key friction pairs (e.g., piston/slipper, valve plate) and the use of high-quality bearings ensure extended service life and exceptional reliability.
. Service-Friendly
Offers a wide range of mounting flanges and shaft extensions, and is designed for easy maintenance.
4,Typical Applications
PVH pistion pumps are commonly found in hydraulic systems requiring high pressure, high power, and intelligent control, such as in:
· Injection Molding Machines
· Hydraulic Presses
· Construction Machinery (e.g., excavators, cranes, concrete pumps)
· Metalforming Equipment
· Marine Machinery
· Test Rigs
5,Frequently Asked Questions(FAQ)
Q: What makes PVH pistion pumps suitable for high-pressure applications?
· A: The PVH pistion pump features reinforced housing, optimized bearing design, and special piston group technology that enables reliable operation at pressures up to 380 bar.
· Q: CanPVH pistion pumps be used in mobile applications?
· A: While primarily designed for industrial applications,PVH pistion pumps are suitable for large mobile equipment where high pressure and reliability are required.
