| Brand Name: | OUSTER |
| Model Number: | PV |
| MOQ: | 1PC |
| Price: | $225-$2225.6 |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 5000PC/Year |

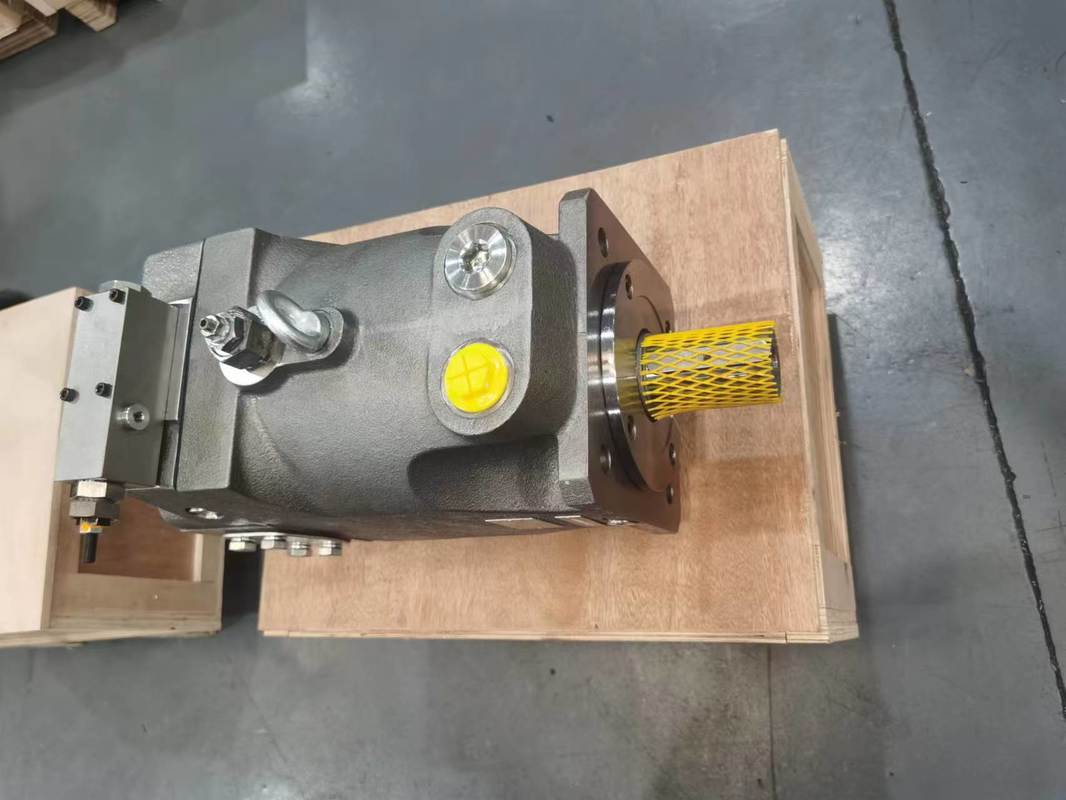

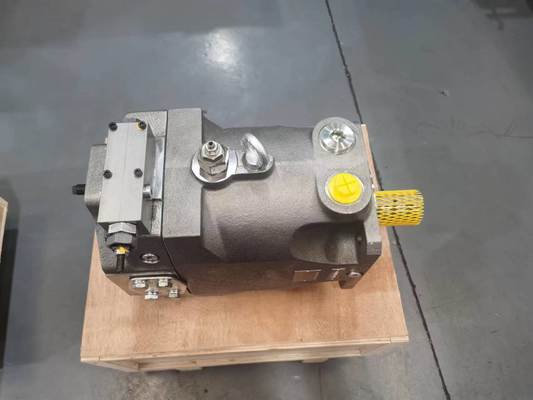

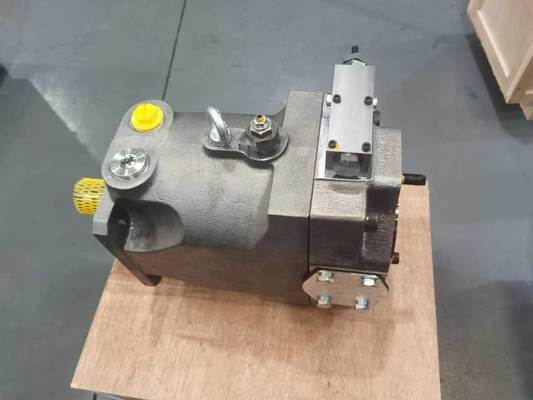

1, Product Overview
The PV series hydraulic pump is a widely used axial piston variable displacement pump in industrial fields. It is renowned for its high pressure, high efficiency, long service life, and reliable variable mechanism. It is particularly suitable for complex hydraulic systems that require energy savings and precise control.
2,Working Principle
The PV pump is a type of swashplate axial piston pump. Its working principle is as follows: the drive shaft rotates the cylinder block. The pistons, uniformly distributed within the block, rotate with it. The spherical ends of the pistons are connected to slippers that are held against the swashplate. Because the swashplate is set at an angle (swashplate angle) to the axis of the cylinder block, the pistons reciprocate within their bores as the block rotates, thereby performing suction and discharge of hydraulic fluid. By changing the angle of the swashplate, the stroke of the pistons is altered, allowing for continuous, stepless variation of the pump's displacement and output flow.
3, Key Features
· Variable Displacement Mechanism: This is the core of the PV pump. It typically employs control methods like pressure compensation, load sensing, or constant power. For instance, a pressure-compensated pump automatically reduces its output flow upon reaching a set pressure, achieving energy savings and system protection.
· High Operating Pressure: Designed for continuous operation at high pressures, often rated up to 280 bar or higher.
· High Efficiency: Features optimized friction pairs (slipper/swashplate) and valve plate designs, resulting in high volumetric and mechanical efficiency, which minimizes energy loss.
· Compact Design: Small size and high power density make them easy to install in equipment with space constraints.
· Low Noise: Precision manufacturing and design contribute to reduced noise levels during operation.
· Long Service Life and Reliability: Critical components are made from high-quality materials using advanced manufacturing processes, ensuring durability even under harsh operating conditions.
4,Typical Applications
PV pumps are widely used in various mobile and industrial machinery, such as:
· Construction Machinery: Excavators, loaders, cranes, concrete pump trucks.
· Metallurgical Equipment: Continuous casters, rolling mills.
· Marine and Offshore: Deck machinery, steering gears.
· Injection Molding Machines.
· Presses.
5,Frequently Asked Questions(FAQ)
Q: Are digital control options available for PV piston pumps?
· A: Yes, the PV series offers electronic proportional controls with various interface options for integration with modern control systems.
· Q: Where can I find complete technical documentation?
· A: Comprehensive technical manuals, dimension drawings, and performance curves are available , Contact us for complete documentation.
Company information
QUZHOU OUSTER HYDRAULIC Co., Ltd, founded in 2015 with more than 13 years export experience, specializes in procuring and selling hydraulic pumps and hydraulic pump parts.
Our main products include hydraulic pumps, hydraulic pump parts, hydraulic motors, gearboxes, and hydraulic valves. Our products have been exported to more than 68 countries worldwide.
| customized service | 1.We can help buyers design specific hydraulic pump or produce products according to buyers'design 2.We can print logo according to buyers' requirement |
| our advantages | 1.We are one of the most complete hydraulic pump accessories manufacturers in the china, we have been engaged in hydraulic pump accessories for more than 10 years. 2.Our price is low, the delivery time is fast, the model is complete, because we are a factory. |
| Customer Service |
1.You may email us through the WhatsApp:+8613586697819 if you have a question or would like to submit a comment. 2. Generally, email will be responded to within 24 hours; except on every Sunday and holidays. We will reply as soon as we back in office. 3. If you don't see what you are looking for, just send us an e-mail with picture/hydraulic pump number and we will be glad to help you. 4. Positive feedback is very important to us. |
| Packaging & Shipping Delivery Details |
1.We can choose different ways of transportation according to the needs of the customers, either by commercial express or by air and sea. 2.The delivery cycle of accessories is generally about one weeks,but we have many spare parts in stock , the delivery cycle of the pump is generally one to three weeks, depending on which model. |
| Questions you maybe inquiry |
Q1:Could you custom hydraulic pump? A:We can manufacture it according to your drawings or samples. Q2: I want to buy your hydraulic pump and pump parts, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q3: How can you guarantee the quality? A: One year's warranty against B/L date. If You meet with quality problem, we promise to responsible for it. Q4: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q5: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q6: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit. |
