| Brand Name: | OUSTER |
| Model Number: | A10VSO |
| MOQ: | 1 |
| Price: | 288-1518 |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 500PCS/MONTH |

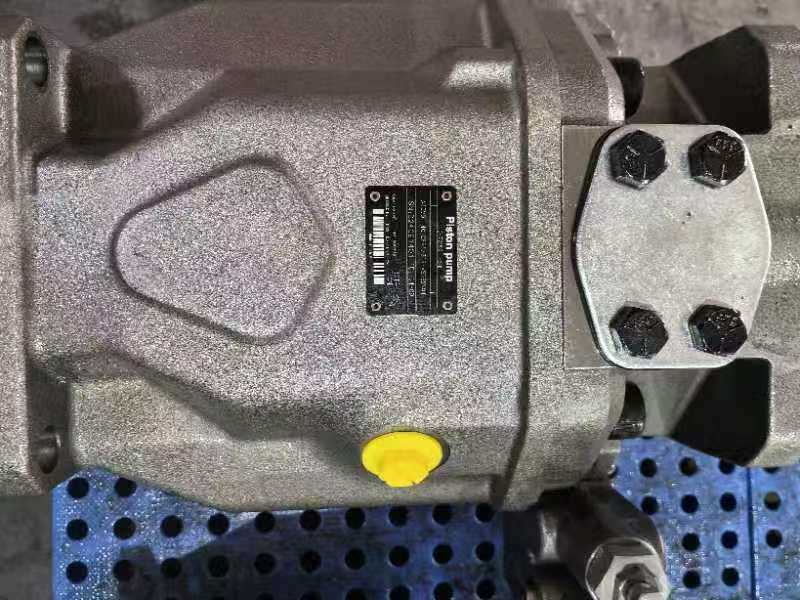

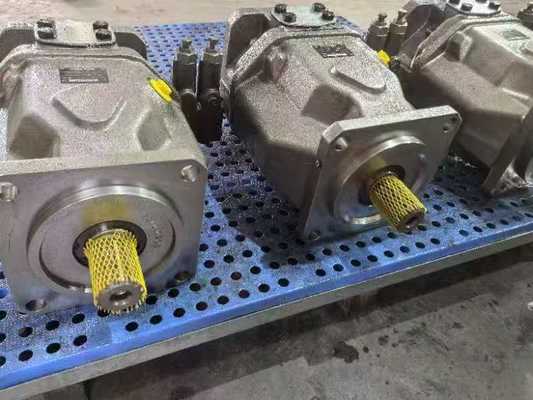

Rexroth A10VSO Variable Pump for Industrial Applications Open Circuit
The Rexroth A10VSO is an axial piston variable displacement hydraulic pump belonging to the Rexroth A10VSO series. This series of pumps is renowned for its compact design, high efficiency, and reliable performance, and is widely used in fields such as engineering machinery, ships, and industrial equipment.
The following is detailed information about the Rexroth A10VSO:
Core technical parameters
-Displacement: 28_140 cm ³/rev (with a displacement of 140 cubic centimeters per revolution)
-Rated pressure: typically 32 MPa (megapascals)
-Applicable medium: hydraulic oil
-Applicable temperature range: 30 ° C to 90 ° C
-Installation form: flange installation
-Working principle: By changing the angle of the inclined plate, the output flow rate can be adjusted to achieve stepless adjustment of pressure and flow rate.
Product Features
-Efficient and reliable: adopting advanced axial piston design, high efficiency, smooth operation and long service life.
-Variable control: As a variable pump, it can automatically or manually adjust the output flow according to system requirements, effectively reducing energy loss.
-Compact structure: The design is compact, lightweight, and easy to install in various devices.
-Widely applicable: Suitable for both open and closed systems, it can well meet the needs of complex working conditions such as engineering machinery and ships.
Application field
Based on its technical parameters and performance, A10VSO140 hydraulic pump is mainly used in equipment that requires stable and reliable hydraulic power sources:
-Ship: Used for deck machinery (such as anchors, winches), servo systems, etc.
-Engineering machinery: hydraulic systems used for equipment such as concrete pump trucks, rollers, and pavers.
-Industrial equipment: used for various industrial machinery and automated production lines that require efficient hydraulic drive.
| Type code Type code |
||||||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | ||||||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | |||||||||||||||||||||
| Version 18 28 45 71 88 100 140 | ||||||||||||||||||||||||||
| 01 | Standard version (without code) | |||||||||||||||||||||||||
| High-speed version (external dimensions are the same as the standard version) | - | - | - | H | ||||||||||||||||||||||
| Axial piston unit | ||||||||||||||||||||||||||
| 02 | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | - | - | - | - | - | - | A10VS | ||||||||||||||||||
| - | A10V | |||||||||||||||||||||||||
| Operating mode | ||||||||||||||||||||||||||
| 03 | Pump, open circuit | O | ||||||||||||||||||||||||
| Size (NG) | ||||||||||||||||||||||||||
| 04 | Geometric displacement, see table of values on pages 6 and 7 | 18 | 28 | 45 | 71 | 88 | 100 | 140 | ||||||||||||||||||
| Control device | ||||||||||||||||||||||||||
| 05 | Two-point control, direct operated | DG | ||||||||||||||||||||||||
| Pressure controller hydraulic | DR | |||||||||||||||||||||||||
| with flow controller hydraulic | X-T open | DFR | ||||||||||||||||||||||||
| X-T plugged with flushing function | DFR1 | |||||||||||||||||||||||||
| X-T plugged without flushing function | DRSC | |||||||||||||||||||||||||
| with flow and differential pressure control, electrically variable | EF1) | |||||||||||||||||||||||||
| with pressure cut-off | hydraulic remote controlled | DRG | ||||||||||||||||||||||||
| electrical negative control | U = 12 V | ED71 | ||||||||||||||||||||||||
| U = 24 V | ED72 | |||||||||||||||||||||||||
| electrical positive control | U = 12 V | ER71 | ||||||||||||||||||||||||
| U = 24 V | ER72 | |||||||||||||||||||||||||
| Pressure-flow power control | - | DFLR | ||||||||||||||||||||||||
| Series | ||||||||||||||||||||||||||
| 06 | Series 3, index 1 | 31 | ||||||||||||||||||||||||
| Direction of rotation | ||||||||||||||||||||||||||
| 07 | Viewed on drive shaft | clockwise | R | |||||||||||||||||||||||
| counter-clockwise | L | |||||||||||||||||||||||||
| Sealing material | ||||||||||||||||||||||||||
| 08 | FKM (fluoroelastomer) | V | ||||||||||||||||||||||||
| Drive shaft 18 28 45 71 88 100 140 | ||||||||||||||||||||||||||
| 09 | Splined shaft ANSI B92.1a | standard shaft | S | |||||||||||||||||||||||
| similar to shaft "S" however for higher input torque | - | - | R | |||||||||||||||||||||||
| reduced diameter, limited suitability for through drive (see table of values, page 9) | ○ | U | ||||||||||||||||||||||||
| same as "U", higher torque; limited suitability for through drive (see table of values, page 9) | - | W | ||||||||||||||||||||||||
| Mounting flange | ||||||||||||||||||||||||||
| 10 | ISO 3019-1 (SAE) | 2-hole | C | |||||||||||||||||||||||
| 4-hole | - | - | - | - | - | - | D | |||||||||||||||||||
| 1) See data sheet 92709 | ||||||||||||||||||||||||||
| Type code | |||||||||||||||||||||||
| 01 02 03 04 05 06 07 08 09 10 11 12 13 | |||||||||||||||||||||||
| A10V(S) | O | / | 31 | - | V | ||||||||||||||||||
| Working port 18 28 45 71 88 100 140 | |||||||||||||||||||||||
| 11 | SAE flange ports according to J518 Working ports metric |
Fastening thread metric; rear |
not for through drive | - | - | - | 11 | ||||||||||||||||
| - | - | - | - | - | 41 | ||||||||||||||||||
| Fastening thread metric; lateral top bottom |
for through drive | - | - | 12 | |||||||||||||||||||
| - | - | - | - | - | 42 | ||||||||||||||||||
| SAE flange ports according to J518 Working ports UNF |
Fastening thread UNF; rear |
not for through drive | - | - | - | 61 | |||||||||||||||||
| - | - | - | - | - | 91 | ||||||||||||||||||
| Fastening thread UNF; lateral top bottom |
for through drive | - | - | 62 | |||||||||||||||||||
| - | - | - | - | - | 92 | ||||||||||||||||||
| Through drive (for mounting options, see page 53) | |||||||||||||||||||||||
| 12 | Flange ISO 3019-1 Hub for splined shaft2) Diameter Diameter |
18 28 45 71 88 100 140 | |||||||||||||||||||||
| without through drive | N00 | ||||||||||||||||||||||
| 82-2 (A) | 5/8 in 9T 16/32DP | K01 | |||||||||||||||||||||
| 3/4 in 11T 16/32DP | K52 | ||||||||||||||||||||||
| 101-2 (B) | 7/8 in 13T 16/32DP | - | K68 | ||||||||||||||||||||
| 1 in 15T 16/32DP | - | - | K04 | ||||||||||||||||||||
| 127-2 (C) | 1 1/4 in 14T 12/24DP | - | - | - | K07 | ||||||||||||||||||
| 1 1/2 in 17T 12/24DP | - | - | - | - | - | K24 | |||||||||||||||||
| 152-4 (D) 1 3/4 in 13T 8/16DP | - | - | - | - | - | - | K174) | ||||||||||||||||
| Connectors for solenoids3) | |||||||||||||||||||||||
| 13 | Without connector (without solenoid, with hydraulic control only, without code) | ||||||||||||||||||||||
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | ||||||||||||||||||||||
| = Available ○ = On request - = Not available | |||||||||||||||||||||||
| Notice Note the project planning notes on page 59. In addition to the type code, please specify the rel- evant technical data when placing your order. |
|||||||||||||||||||||||
| Hydraulic fluids Hydraulic fluids |
|||||||||||||||
| The A10V(S)O variable pump is designed for operation with HLP mineral oil according to DIN 51524. Application instructions and requirements for hydraulic fluids should be taken from the following data sheets before the start of project planning: 90220: Hydraulic fluids based on mineral oils and related hydrocarbons 90221: Environmentally acceptable hydraulic fluids 90222: HFD hydraulic fluids (for permissible technical data, see data sheet 90225) |
Notes on selection of hydraulic fluid The hydraulic fluid should be selected such that the operat- ing viscosity in the operating temperature range is within the optimum range (νopt see selection diagram). Notice At no point of the component may the temperature be higher than 115 °C. The temperature difference specified in the table is to be taken into account when determining the viscosity in the bearing. If the above conditions cannot be maintained due to extreme operating parameters, please contact the respon- sible member of staff at Bosch Rexroth. |
||||||||||||||
| Viscosity and temperature of hydraulic fluids | |||||||||||||||
| Viscosity | Temperature | Comment | |||||||||||||
| Cold start νmax ≤ 1600 mm2/s | θSt ≥ -40 °C | t ≤ 1 min, without load (p ≤ 30 bar), n ≤ 1000 rpm | |||||||||||||
| Permissible temperature difference | ΔT ≤ 25 K | between axial piston unit and hydraulic fluid | |||||||||||||
| Warm-up phase ν < 1600 to 400 mm2/s | θ = -40 °C to -25 °C | Note the detailed information on operation with low tempera- tures, see data sheet 90300-03-B | |||||||||||||
| Continuous operation ν = 400 to 10 mm2/s | this corresponds, for VG 46 for example, to a temperature range of +5 °C to +85 °C (see selection diagram) | ||||||||||||||
| θ = -25 °C to +110 °C | measured at port L, L1 observe the permissible temperature range of the shaft seal |
||||||||||||||
| (ΔT = approx. 5 K between the bearing/shaft seal and port L, L1) | |||||||||||||||
| νopt = 36 to 16 mm2/s | Range of optimum operating viscosity and efficiency | ||||||||||||||
| Short-term operation νmin 7 mm2/s | t < 1 min, p < 0.3 • pnom | ||||||||||||||
| Selection diagram | |||||||||||||||
| Maximum permissible viscosity for cold start | 1600 1000 600 |
Warm-up phase | |||||||||||||
| Minimum permissible viscosity for short-term operation | 7 -40 |
-25 | -10 | 0 10 | 30 50 | 70 90 | 115 | ||||||||
| Temperature θ [°C] | |||||||||||||||
| X-T plugged without flushing function | |||||||||||||||
| Filtration of the hydraulic fluid Finer filtration improves the cleanliness level of the hydrau- lic fluid, which increases the service life of the axial piston unit. A cleanliness level of at least 20/18/15 is to be maintained according to ISO 4406. At very high hydraulic fluid temperatures (90 °C to maxi- mum 115 °C), cleanliness level 19/17/14 according to at least ISO 4406 is necessary. Please contact us if the above classes cannot be observed. |
![]()
![]()
![]()
![]()
![]()
![]()
